关于

HexoHub是款个人开发的项目（桌面应用程序），旨在提供一个一体化的hexo集成可视化面板，优化hexo使用体验。

      截至撰文，HexoHub已更新到v2.2.0。近几个版本的更新主要集中在界面的调整和性能的优化，包括但不限于：

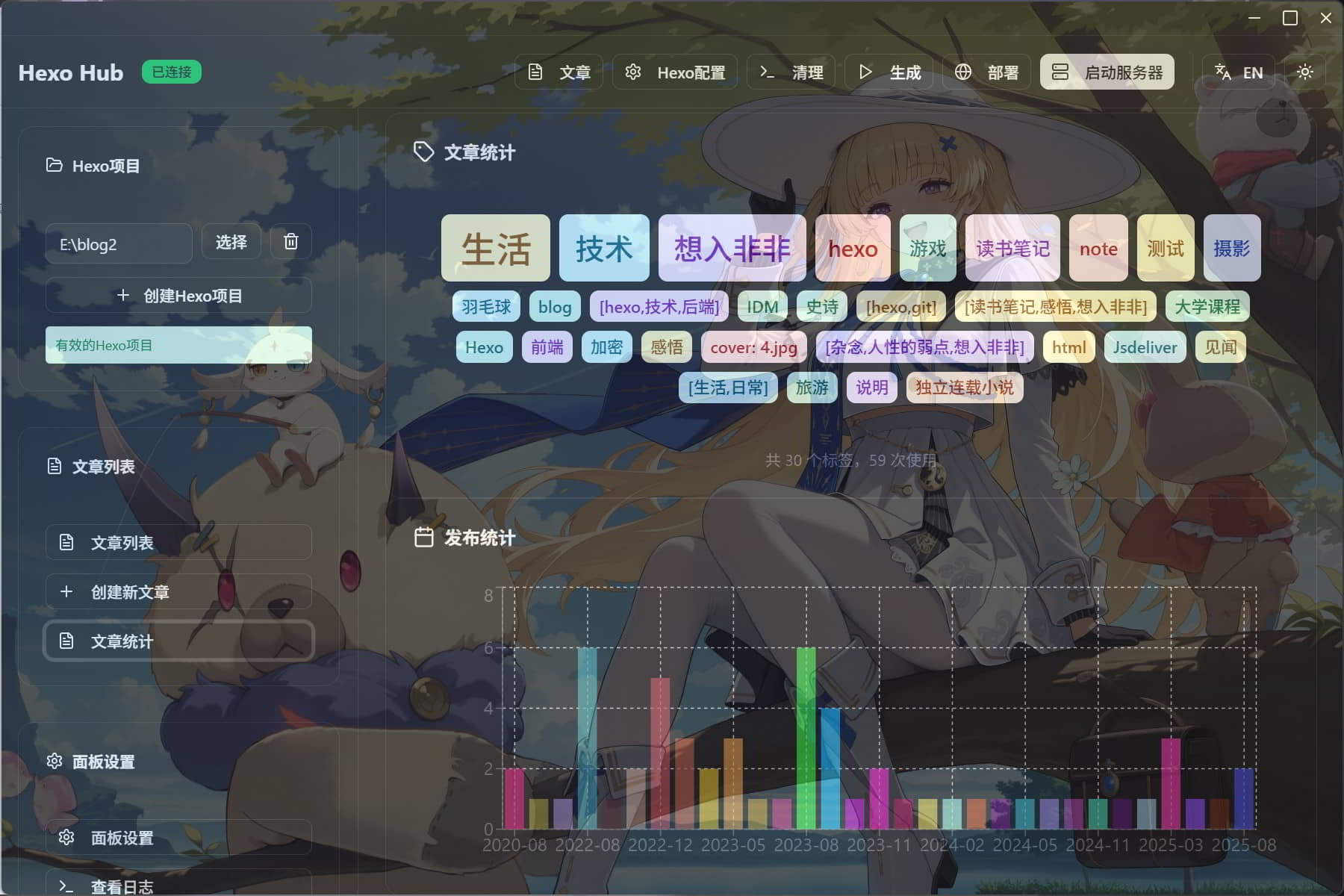

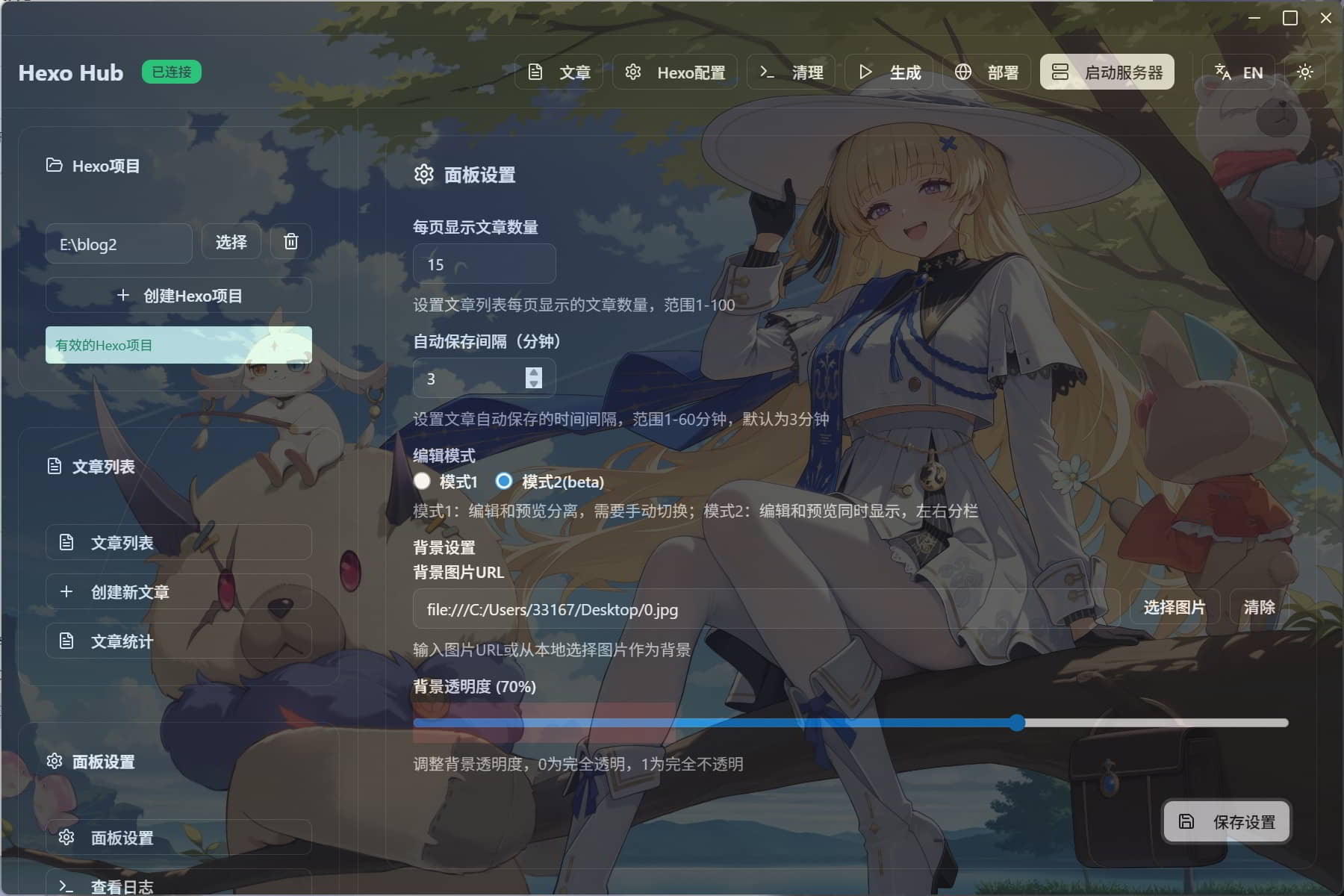

  1. 加入背景自定义，面板透明度可调
  2. 优化顶部窗口栏，使程序界面看起来无边框化

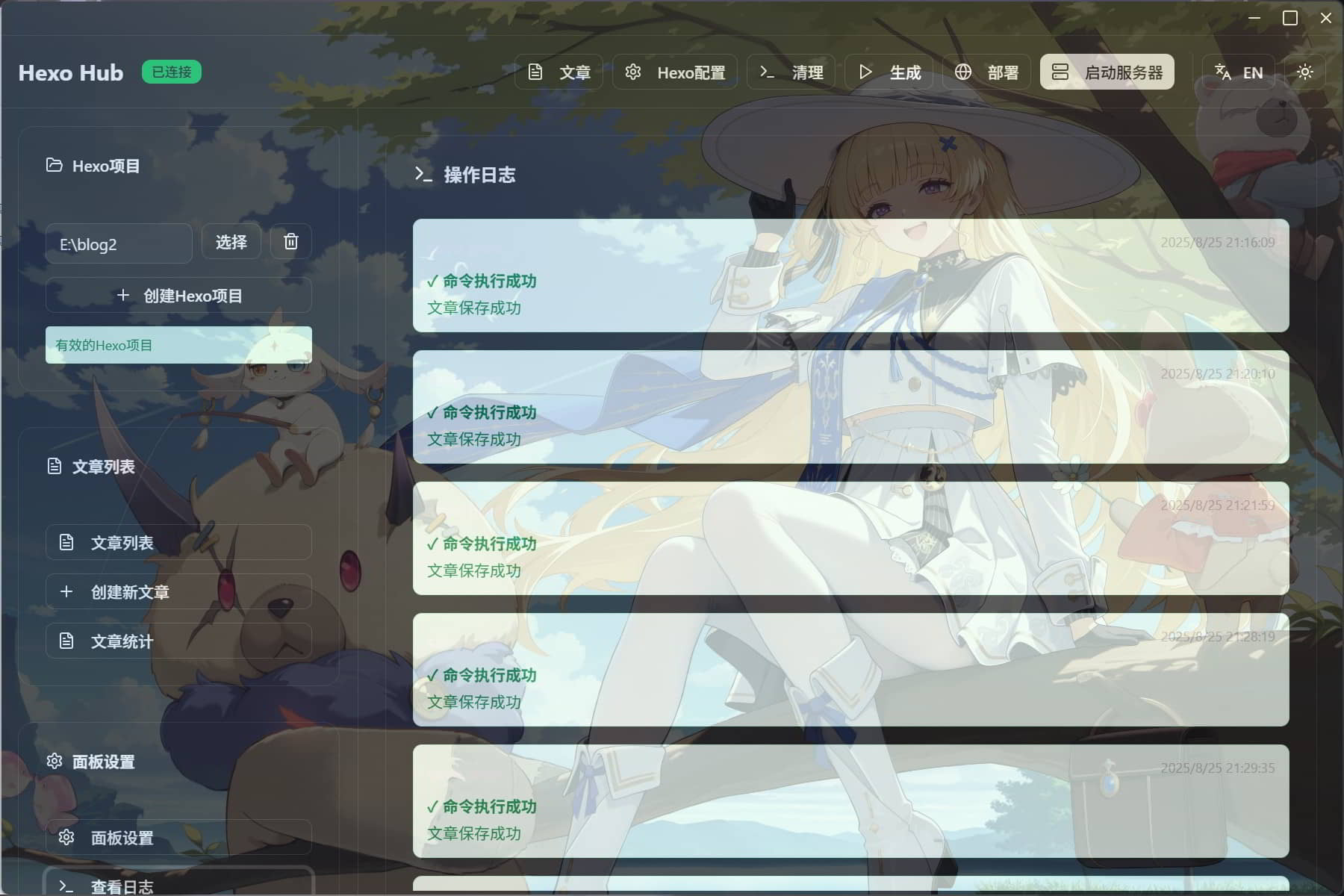

  3. 优化日志记录，日志记录更加全面清晰
  4. 优化总体界面布局
  5. 优化程序性能，解决了当程序关闭后，hexohub进程依然存在的问题
  6. （下文将提到）优化应用大小，原本850MB缩小至290MB

Electron应用构建思考

      我的package.json是这样的：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
{
  "name": "nextjs_tailwind_shadcn_ts",
  "version": "2.1.1",
  "description": "HexoHub Desktop Application",
  "author": "Lisiran",
  "private": true,
  "main": "public/electron.js",
  "homepage": "./",
  "scripts": {
    "dev": "next dev",
    "dev:socket": "nodemon --exec \"npx tsx server.ts\" --watch server.ts --watch src --ext ts,tsx,js,jsx 2>&1 | tee dev.log",
    "build": "next build",
    "start": "NODE_ENV=production tsx server.ts 2>&1 | tee server.log",
    "lint": "next lint",
    "db:push": "prisma db push",
    "db:generate": "prisma generate",
    "db:migrate": "prisma migrate dev",
    "db:reset": "prisma migrate reset",
    "electron": "npm run build && electron .",
    "electron-dev": "concurrently \"npm run dev\" \"wait-on http://localhost:3000 && electron .\"",
    "package": "electron-builder --dir",
    "make": "electron-builder",
    "publish": "electron-builder --publish"
  },
  "dependencies": {
    "@dnd-kit/core": "^6.3.1",
    "@dnd-kit/sortable": "^10.0.0",
    "@dnd-kit/utilities": "^3.2.2",
    "@hookform/resolvers": "^5.1.1",
    "@mdxeditor/editor": "^3.39.1",
    "@prisma/client": "^6.11.1",
    "@radix-ui/react-accordion": "^1.2.11",
    "@radix-ui/react-alert-dialog": "^1.1.14",
    "@radix-ui/react-aspect-ratio": "^1.1.7",
    "@radix-ui/react-avatar": "^1.1.10",
    "@radix-ui/react-checkbox": "^1.3.2",
    "@radix-ui/react-collapsible": "^1.1.11",
    "@radix-ui/react-context-menu": "^2.2.15",
    "@radix-ui/react-dialog": "^1.1.14",
    "@radix-ui/react-dropdown-menu": "^2.1.15",
    "@radix-ui/react-hover-card": "^1.1.14",
    "@radix-ui/react-label": "^2.1.7",
    "@radix-ui/react-menubar": "^1.1.15",
    "@radix-ui/react-navigation-menu": "^1.2.13",
    "@radix-ui/react-popover": "^1.1.14",
    "@radix-ui/react-progress": "^1.1.7",
    "@radix-ui/react-radio-group": "^1.3.7",
    "@radix-ui/react-scroll-area": "^1.2.9",
    "@radix-ui/react-select": "^2.2.5",
    "@radix-ui/react-separator": "^1.1.7",
    "@radix-ui/react-slider": "^1.3.5",
    "@radix-ui/react-slot": "^1.2.3",
    "@radix-ui/react-switch": "^1.2.5",
    "@radix-ui/react-tabs": "^1.1.12",
    "@radix-ui/react-toast": "^1.2.14",
    "@radix-ui/react-toggle": "^1.1.9",
    "@radix-ui/react-toggle-group": "^1.1.10",
    "@radix-ui/react-tooltip": "^1.2.7",
    "@reactuses/core": "^6.0.5",
    "@tanstack/react-query": "^5.82.0",
    "@tanstack/react-table": "^8.21.3",
    "axios": "^1.10.0",
    "class-variance-authority": "^0.7.1",
    "clsx": "^2.1.1",
    "cmdk": "^1.1.1",
    "date-fns": "^4.1.0",
    "embla-carousel-react": "^8.6.0",
    "framer-motion": "^12.23.2",
    "input-otp": "^1.4.2",
    "lucide-react": "^0.525.0",
    "next": "^15.3.5",
    "next-auth": "^4.24.11",
    "next-intl": "^4.3.4",
    "next-themes": "^0.4.6",
    "prisma": "^6.11.1",
    "react": "^19.0.0",
    "react-day-picker": "^9.8.0",
    "react-dom": "^19.0.0",
    "react-hook-form": "^7.60.0",
    "react-markdown": "^10.1.0",
    "react-resizable-panels": "^3.0.3",
    "react-syntax-highlighter": "^15.6.1",
    "recharts": "^3.1.2",
    "remark-breaks": "^4.0.0",
    "remark-gfm": "^4.0.1",
    "sharp": "^0.34.3",
    "socket.io": "^4.8.1",
    "socket.io-client": "^4.8.1",
    "sonner": "^2.0.6",
    "tailwind-merge": "^3.3.1",
    "tailwindcss-animate": "^1.0.7",
    "tslib": "^2.8.1",
    "tsx": "^4.20.3",
    "uuid": "^11.1.0",
    "vaul": "^1.1.2",
    "z-ai-web-dev-sdk": "^0.0.10",
    "zod": "^4.0.2",
    "zustand": "^5.0.6"
  },
  "devDependencies": {
    "@electron-forge/cli": "^7.5.0",
    "@electron-forge/maker-deb": "^7.5.0",
    "@electron-forge/maker-rpm": "^7.5.0",
    "@electron-forge/maker-squirrel": "^7.5.0",
    "@electron-forge/maker-zip": "^7.5.0",
    "@electron-forge/plugin-auto-unpack-natives": "^7.5.0",
    "@eslint/eslintrc": "^3",
    "@tailwindcss/postcss": "^4",
    "@types/node": "^20",
    "@types/react": "^19",
    "@types/react-dom": "^19",
    "concurrently": "^9.2.0",
    "cross-env": "^10.0.0",
    "electron": "37.2.6",
    "electron-builder": "^26.0.12",
    "eslint": "^9",
    "eslint-config-next": "15.3.5",
    "nodemon": "^3.1.10",
    "tailwindcss": "^4",
    "tw-animate-css": "^1.3.5",
    "typescript": "^5",
    "wait-on": "^8.0.4"
  },
  "build": {
    "appId": "com.hexo.desktop",
    "productName": "HexoHub",
    "directories": {
      "output": "dist"
    },
    "files": [
      "out/**/*",
      "public/electron.js",
      "node_modules/**/*"
    ],
    "mac": {
      "category": "public.app-category.productivity",
      "target": [
        {
          "target": "dmg",
          "arch": [
            "x64",
            "arm64"
          ]
        }
      ]
    },
    "win": {
      "target": [
        {
          "target": "nsis",
          "arch": [
            "x64"
          ]
        }
      ],
      "icon": "public/icon.ico"
    },
    "linux": {
      "target": [
        {
          "target": "AppImage",
          "arch": [
            "x64"
          ]
        }
      ],
      "icon": "public/icon.png"
    },
    "nsis": {
      "oneClick": false,
      "allowToChangeInstallationDirectory": true
    }
  }
}

      完成了界面的设计和功能的搭建后，执行cnpm run electron在开发环境下预览，执行cnpm run build生成静态发布文件，执行cnpm run make构建exe可执行文件（发行版）。
      构建之后，发现安装所需大小为851MB，这么大！尽管我不是专业开发者，但能感觉到这个大小并不正常。当时是第一次构建成功（在此之前，有个全局css样式引入问题我一直解决不了，困扰了相当久——两个星期左右，导致一直构建失败），兴奋着来没管那么多，直接发布了第一个版本，后继的开发也主要在功能和界面的改进上，把这个大小问题暂时放在一边。

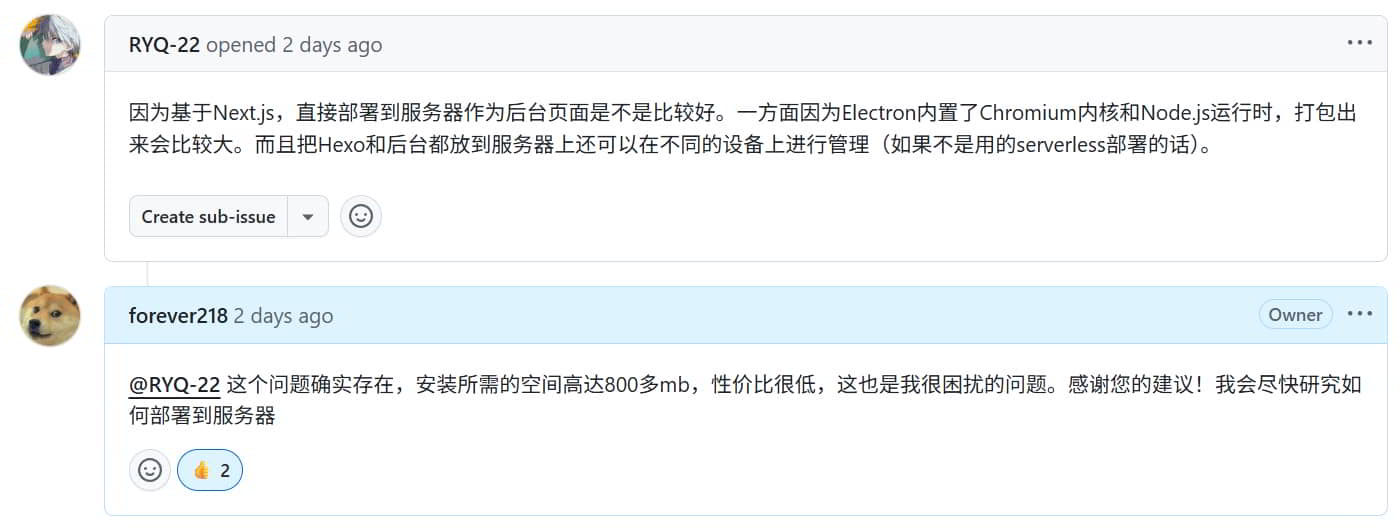

      后来功能完善的差不多，碰巧R1cky也在这时候提了个与占用空间有关的issue：

于是重新研究起这个问题。

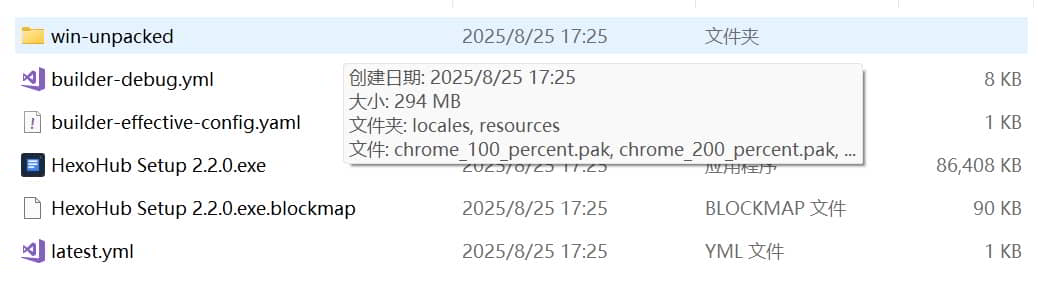

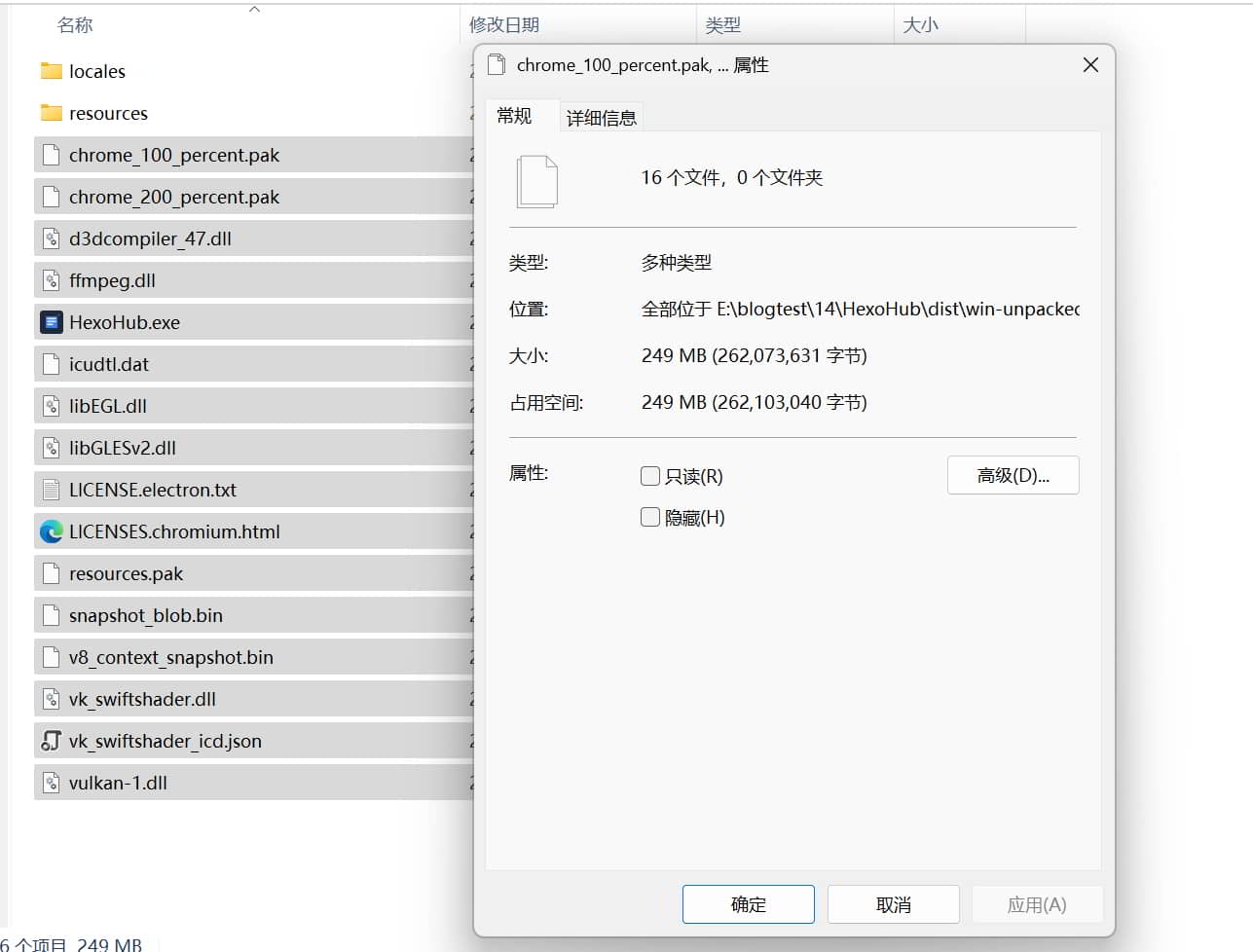

首先查看安装后的目录：

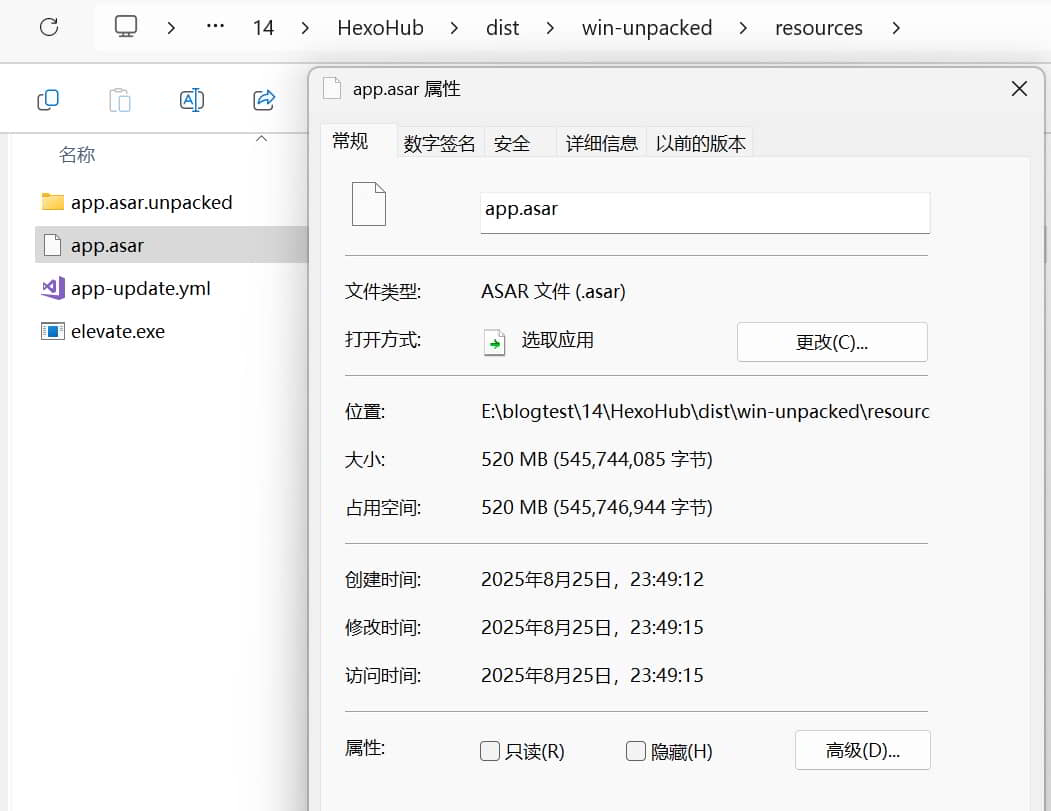

可以发现，应用本身、chromium v8浏览器内核、nodejs这些基本的electron应用组件占294MB，在850MB中占比并不大，真正大的是里面的asar文件，体积高达500MB：

什么是ASAR文件？
.asar 文件是 Electron 应用特有的一个存档格式，它把应用的源代码（HTML, CSS, JavaScript, 资源文件等）打包成一个单一文件，目的是为了组织和保护代码，防止用户轻易查看和修改，是 Electron 用来封装和分发应用程序源代码的标准容器文件。可以使用以下命令来查看、提取asar文件内容：

1
2
3
4
5
6
7
8
# 安装 asar 工具
npm install -g asar

# 查看 asar 文件内容
asar list app.asar

# 提取 asar 文件到指定目录
asar extract app.asar ./extracted-folder

查看asar文件发现，里面有相当多的npm包，绝大部分都是package.json里dependencies的。当时认为，这是因为我在build字段填入了”node_modules/**/*”导致的：

1
2
3
4
5
6
7
8
9
10
11
"build": {
  "appId": "com.hexo.desktop",
  "productName": "HexoHub",
  "directories": {
    "output": "dist"
  },
  "files": [
    "out/**/*",
    "public/electron.js",
    "node_modules/**/*"  //这里
  ],

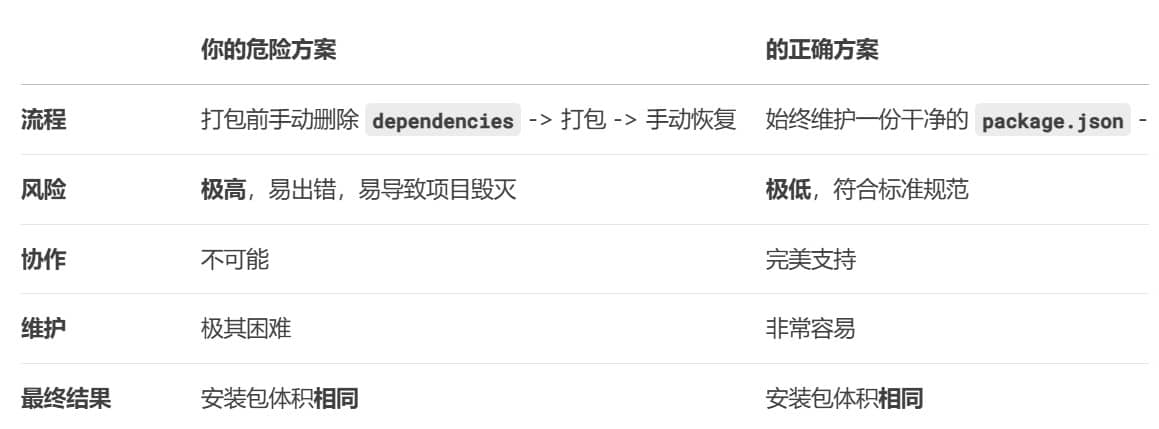

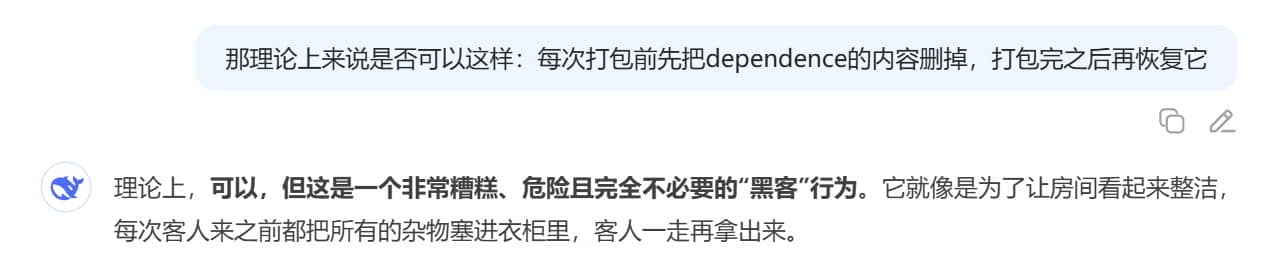

那接下来的工作就是要优化dependencies，问了问AI，将几个体积比较大的依赖移动到了下面的devDependencies中（特别是next，这个玩意相当大）。这些包只在我开发的时候有用，在生产环境并无作用，执行构建时，构建器不会把开发依赖进行打包。下面是我优化后的package.json：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
{
  "name": "nextjs_tailwind_shadcn_ts",
  "version": "2.2.0",
  "description": "HexoHub Desktop Application",
  "author": "Lisiran",
  "private": true,
  "main": "public/electron.js",
  "homepage": "./",
  "scripts": {
    "dev": "next dev",
    "dev:socket": "nodemon --exec \"npx tsx server.ts\" --watch server.ts --watch src --ext ts,tsx,js,jsx 2>&1 | tee dev.log",
    "build": "next build",
    "start": "NODE_ENV=production tsx server.ts 2>&1 | tee server.log",
    "lint": "next lint",
    "db:push": "prisma db push",
    "db:generate": "prisma generate",
    "db:migrate": "prisma migrate dev",
    "db:reset": "prisma migrate reset",
    "electron": "npm run build && electron .",
    "electron-dev": "concurrently \"npm run dev\" \"wait-on http://localhost:3000 && electron .\"",
    "package": "electron-builder --dir",
    "make": "electron-builder",
    "publish": "electron-builder --publish"
  },
  "dependencies": {
    "@dnd-kit/core": "^6.3.1",
    "@dnd-kit/sortable": "^10.0.0",
    "@dnd-kit/utilities": "^3.2.2",
    "@hookform/resolvers": "^5.1.1",
    "@mdxeditor/editor": "^3.39.1",
    "@radix-ui/react-accordion": "^1.2.11",
    "@radix-ui/react-alert-dialog": "^1.1.14",
    "@radix-ui/react-aspect-ratio": "^1.1.7",
    "@radix-ui/react-avatar": "^1.1.10",
    "@radix-ui/react-checkbox": "^1.3.2",
    "@radix-ui/react-collapsible": "^1.1.11",
    "@radix-ui/react-context-menu": "^2.2.15",
    "@radix-ui/react-dialog": "^1.1.14",
    "@radix-ui/react-dropdown-menu": "^2.1.15",
    "@radix-ui/react-hover-card": "^1.1.14",
    "@radix-ui/react-label": "^2.1.7",
    "@radix-ui/react-menubar": "^1.1.15",
    "@radix-ui/react-navigation-menu": "^1.2.13",
    "@radix-ui/react-popover": "^1.1.14",
    "@radix-ui/react-progress": "^1.1.7",
    "@radix-ui/react-radio-group": "^1.3.7",
    "@radix-ui/react-scroll-area": "^1.2.9",
    "@radix-ui/react-select": "^2.2.5",
    "@radix-ui/react-separator": "^1.1.7",
    "@radix-ui/react-slider": "^1.3.5",
    "@radix-ui/react-slot": "^1.2.3",
    "@radix-ui/react-switch": "^1.2.5",
    "@radix-ui/react-tabs": "^1.1.12",
    "@radix-ui/react-toast": "^1.2.14",
    "@radix-ui/react-toggle": "^1.1.9",
    "@radix-ui/react-toggle-group": "^1.1.10",
    "@radix-ui/react-tooltip": "^1.2.7",
    "@reactuses/core": "^6.0.5",
    "@tanstack/react-query": "^5.82.0",
    "@tanstack/react-table": "^8.21.3",
    "axios": "^1.10.0",
    "class-variance-authority": "^0.7.1",
    "clsx": "^2.1.1",
    "cmdk": "^1.1.1",
    "date-fns": "^4.1.0",
    "embla-carousel-react": "^8.6.0",
    "framer-motion": "^12.23.2",
    "input-otp": "^1.4.2",
    "lucide-react": "^0.525.0",
    "react": "^19.0.0",
    "react-day-picker": "^9.8.0",
    "react-dom": "^19.0.0",
    "react-hook-form": "^7.60.0",
    "react-markdown": "^10.1.0",
    "react-resizable-panels": "^3.0.3",
    "react-syntax-highlighter": "^15.6.1",
    "recharts": "^3.1.2",
    "remark-breaks": "^4.0.0",
    "remark-gfm": "^4.0.1",
    "socket.io": "^4.8.1",
    "socket.io-client": "^4.8.1",
    "sonner": "^2.0.6",
    "tailwind-merge": "^3.3.1",
    "uuid": "^11.1.0",
    "vaul": "^1.1.2",
    "zod": "^4.0.2",
    "zustand": "^5.0.6"
  },
  "devDependencies": {
    "@electron-forge/cli": "^7.5.0",
    "@electron-forge/maker-deb": "^7.5.0",
    "@electron-forge/maker-rpm": "^7.5.0",
    "@electron-forge/maker-squirrel": "^7.5.0",
    "@electron-forge/maker-zip": "^7.5.0",
    "@electron-forge/plugin-auto-unpack-natives": "^7.5.0",
    "@eslint/eslintrc": "^3",
    "@tailwindcss/postcss": "^4",
    "@types/node": "^20",
    "@types/react": "^19",
    "@types/react-dom": "^19",
    "concurrently": "^9.2.0",
    "cross-env": "^10.0.0",
    "electron": "37.2.6",
    "electron-builder": "^26.0.12",
    "eslint": "^9",
    "eslint-config-next": "15.3.5",
    "nodemon": "^3.1.10",
    "tailwindcss": "^4",
    "tw-animate-css": "^1.3.5",
    "typescript": "^5",
    "tslib": "^2.8.1",
    "@prisma/client": "^6.11.1",
    "tailwindcss-animate": "^1.0.7",
    "tsx": "^4.20.3",
    "sharp": "^0.34.3",
    "wait-on": "^8.0.4",
    "next": "^15.3.5",
    "next-auth": "^4.24.11",
    "next-intl": "^4.3.4",
    "next-themes": "^0.4.6",
    "prisma": "^6.11.1"
  },
  "build": {
    "appId": "com.hexo.desktop",
    "productName": "HexoHub",
    "directories": {
      "output": "dist"
    },
    "files": [
      "out/**/*",
      "public/electron.js",
      "node_modules/**/*"
    ],
    "mac": {
      "category": "public.app-category.productivity",
      "target": [
        {
          "target": "dmg",
          "arch": [
            "x64",
            "arm64"
          ]
        }
      ]
    },
    "win": {
      "target": [
        {
          "target": "nsis",
          "arch": [
            "x64"
          ]
        }
      ],
      "icon": "public/icon.ico"
    },
    "linux": {
      "target": [
        {
          "target": "AppImage",
          "arch": [
            "x64"
          ]
        }
      ],
      "icon": "public/icon.png"
    },
    "nsis": {
      "oneClick": false,
      "allowToChangeInstallationDirectory": true
    }
  }
}

相比较初版，将以下这些依赖移动到了开发环境中：

1
2
3
4
5
6
7
8
9
10
"next": "^15.3.5",           //  Electron 不需要 Next.js 服务端
"next-auth": "^4.24.11",     //  同上，属于服务端框架
"next-intl": "^4.3.4",       //  Next.js 相关的国际化库
"next-themes": "^0.4.6",     //  虽然叫 themes，但它是 Next.js 的
"prisma": "^6.11.1",         //  Prisma CLI
"sharp": "^0.34.3",          //
"tsx": "^4.20.3",            //  TypeScript 运行/开发工具
"tailwindcss-animate": "^1.0.7",
"@types/*": "...",           // 所有以 @types/ 开头的包
"typescript": "..."          // TypeScript 编译器

      然后重新进行构建，构建后的安装总体积下降到了500MB，感觉还是不理想。继续问AI，也是一直让我优化依赖，但是后面无论我如何修改生产依赖，如何在”files”字段中对打包文件加以限制（例如使用”!**/node_modules/*”来明确声明排除某些包），体积始终在500MB浮动。

转折

      折腾了很久没进展，突然间想到，electron的本质不就是把网页封装成可执行文件吗，所有功能是否已经在run build出的静态文件里实现了？如果是这样的话，那为什么还需要这些依赖呢？下面是执行build之后产生的静态文件，我认为electron已经将所有功能都封装进那些js文件里了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
E:\BLOGTEST\14\HEXOHUB\OUT
│  404.html
│  electron.js
│  favicon.ico
│  icon.ico
│  icon.svg
│  index.html
│  index.txt
│  installer.nsh
│  logo.svg
│  robots.txt
│
├─404
│      index.html
│
└─_next
    ├─static
    │  ├─chunks
    │  │  │  182.89dbb621169a942c.js
    │  │  │  297-7e341dc6da4426c6.js
    │  │  │  308-bc370ace8bbf8006.js
    │  │  │  32e18ead-c6c3328902f2d616.js
    │  │  │  574-2ac505a5b5cd359f.js
    │  │  │  899.b5874afa5657b38d.js
    │  │  │  framework-91a47d5f4e0be608.js
    │  │  │  main-82bc7e31ff7e6e7d.js
    │  │  │  main-app-4ee3c8fd37d90de2.js
    │  │  │  polyfills-42372ed130431b0a.js
    │  │  │  webpack-15e4c3f711e908a0.js
    │  │  │
    │  │  ├─app
    │  │  │  │  error-b428f88d713c9f9c.js
    │  │  │  │  layout-67408bd94e231152.js
    │  │  │  │  not-found-0a2f44452989ced2.js
    │  │  │  │  page-3368876e03233bc2.js
    │  │  │  │
    │  │  │  └─_not-found
    │  │  │          page-744bdc24d9cbb20a.js
    │  │  │
    │  │  └─pages
    │  │          _app-e9fa8edca221553c.js
    │  │          _error-d5d88bbdcf8eb51a.js
    │  │
    │  ├─css
    │  │      516c5aaeed6130a1.css
    │  │
    │  └─ygsDCHyoURBbca-29m7VB
    │          _buildManifest.js
    │          _ssgManifest.js
    │
    └─ygsDCHyoURBbca-29m7VB

      真的是豁然开朗的感觉，于是直接去package.json里，把dependencies的内容全部删了重新构建，得到了开头提到的294MB的安装体积：

      这下舒服了，果然在某些方面，AI的全力以赴，不如人类的灵机一动。后来，找DS问了具体的原理：

这主要得益于现代前端构建工具（如 Vite、Webpack）和 electron-builder 的高度智能化。前端代码已被“打包内联” (Bundling)：在你运行 npm run build（或类似的构建命令）时，你的构建工具（Vite/Webpack）已经完成了最关键的工作：它将你所有的前端依赖（React, Radix, 各种组件库）和你自己写的代码，全部打包、压缩、Tree-shaken 后，生成了一些静态文件（通常是 index.html, assets/index-xxxxxx.js, assets/index-xxxxxx.css）。这些生成的 .js 和 .css 文件已经包含了所有运行时代码。原始的 node_modules 文件夹在运行时不再被需要。electron-builder 打包的是“构建结果”，而非源代码：在你的 electron-builder 配置中，files 字段很可能指向的是构建输出目录（例如 dist/ 或 build/）。electron-builder 的工作只是：把这个已经包含所有依赖的 dist/ 文件夹、你的主进程代码（main.js）和 Electron 运行时捆绑在一起。它并不需要原始的 node_modules 来执行你的渲染进程代码，因为它只需要最终的构建产物。依赖已被“烘焙”进最终文件：
你可以做一个实验：用文本编辑器打开 dist/assets/index-xxxxxx.js 这个文件。你会看到一大片被压缩的代码，在里面搜索 react、zustand 等关键词，你一定能找到它们。它们已经不再是独立的包，而是被“打碎”后融合进了一个或几个大的 JavaScript 文件中。

      这也证实了我一开始的猜想。当然了，这样的“临时修改”肯定是非正规手段，也是被DS狠狠教育了一番：

请立即停止“删除-恢复”的想法。
你通过实验证明了一件事：你的前端构建流程是正确的，最终的安装包体积与 dependencies 字段的内容无关。
你现在需要做的唯一工作就是：
坐下来。
仔细审核你的 package.json。
使用 npm install –save-dev 命令将所有开发工具（如 electron, electron-builder, vite, typescript）正确地移动到 devDependencies 中。
删除真正无用的依赖（如单机应用中的 socket.io）

      行吧，过几天再来研究怎么“正确的”删除依赖。前天游泳的时候，跟一哥们在水里泡着聊天聊久了，没运动开，身子也没热，给我冻感冒了，这几天发烧头晕的不行
